Woodruff Keyway Cutter HSS-AL 8-Flute Semi-Circular Keyseat Milling Cutter
Woodruff Keyway Cutter HSS-AL 8-Flute Semi-Circular Keyseat Milling Cutter
Precio habitual
$1.00 USD
Precio habitual
Precio de oferta
$1.00 USD
Precio unitario
/
por
No se pudo cargar la disponibilidad de retiro
Share
BB Woodruff Keyway Cutter采用优质HSS-AL (High-Speed Steel - Aluminum) 高速钢材质，专为精密半圆键槽(Woodruff Keyway)加工设计。8-Flute设计确保高效切削与优异的表面光洁度，适用于各类金属材料的半圆键槽铣削加工。
可选规格 | Available Specifications
规格格式：刃厚×直径×柄径×总长 (mm)
Format: Blade Thickness × Diameter × Shank Diameter × Overall Length (mm)
| 刃厚(mm) Blade Thickness |
直径(mm) Diameter |
柄径(mm) Shank Dia. |
总长(mm) Overall Length |
|---|---|---|---|
| 2 | 10 | 8 | 51 |
| 3 | 10 | 8 | 51 |
| 2.5 | 10 | 8 | 51 |
| 3 | 13 | 10 | 60 |
| 4 | 13 | 10 | 60 |
| 3 | 16 | 10 | 60 |
| 4 | 16 | 10 | 60 |
| 5 | 16 | 10 | 60 |
| 3 | 19 | 10 | 60 |
| 4 | 19 | 10 | 60 |
| 5 | 19 | 10 | 60 |
| 4 | 22 | 12 | 60 |
| 5 | 22 | 12 | 60 |
产品特点 | Key Features
- 高精度刃口设计，确保键槽(Keyway)尺寸精准 | High-precision cutting edges for accurate keyway dimensions
- 优质HSS-AL高速钢材质，耐磨性强，使用寿命长 | Premium high-speed steel construction for enhanced wear resistance

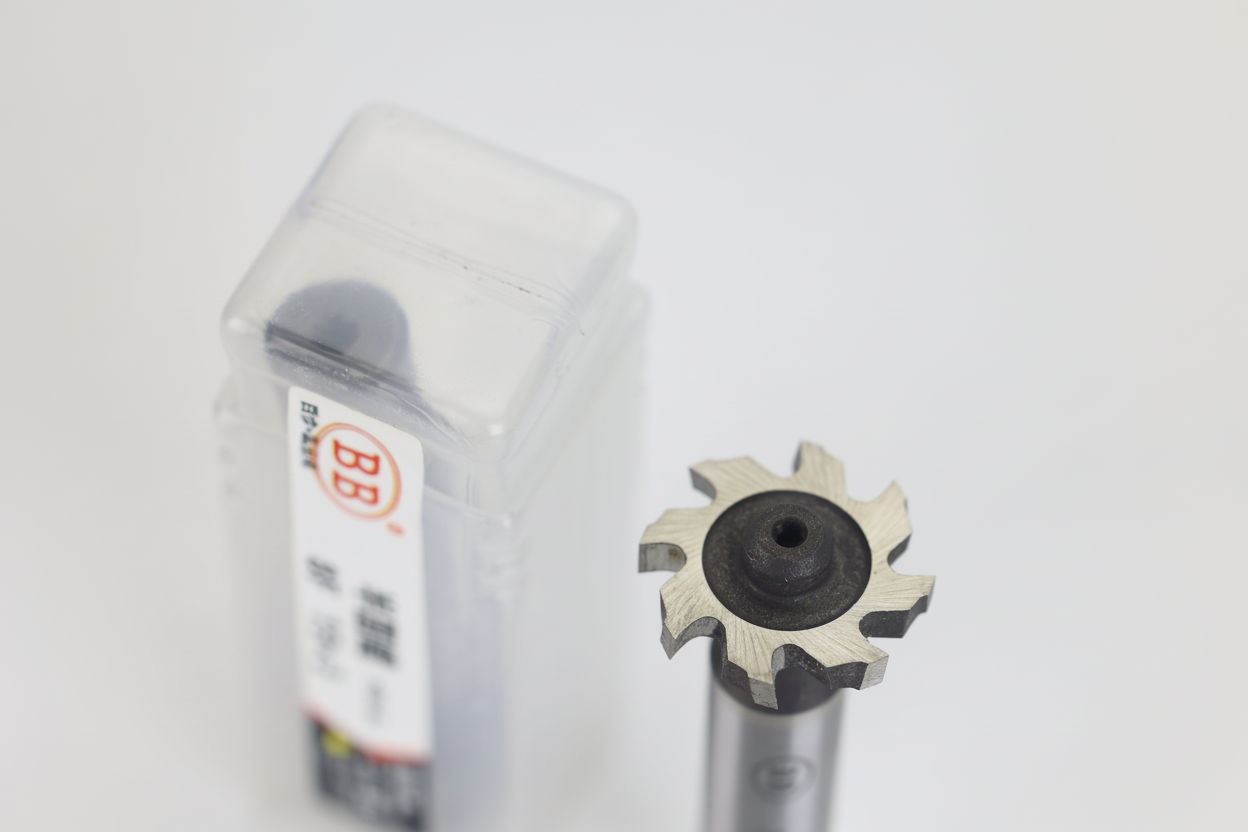

- 8-Flute结构，切削效率高，表面质量优 | 8-flute design for high cutting efficiency and superior surface finish
- 适用于铣床、加工中心等设备 | Compatible with milling machines and machining centers
- 专业包装，便于存储与管理 | Professional packaging for easy storage and management
应用领域 | Applications
- 半圆键(Woodruff Key)键槽加工 | Woodruff key keyseat machining
- 精密机械零件制造 | Precision mechanical parts manufacturing
- 工业设备维修与改造 | Industrial equipment maintenance and modification
