BB UNC UNF NPT BSP G BSPT PT RC Thread Milling Cutter Inch Solid Carbide CNC Pipe Machining Tool 55 60 1/4 3/4 5/16 1/8 3/8 1/2

BB Carbide Thread Milling Cutter

NPT stands for National (American) Pipe Thread. It is the American standard for 60 degree taper Pipe threads.

BSP:
BSPT(PT, RC), short for Pipe Thread, is a 55-degree sealed tapered Pipe Thread.Commonly used in water and gas pipe industry.
BSPP（Parallel）(G, PS , RP),Straight cylindrical pipe thread.

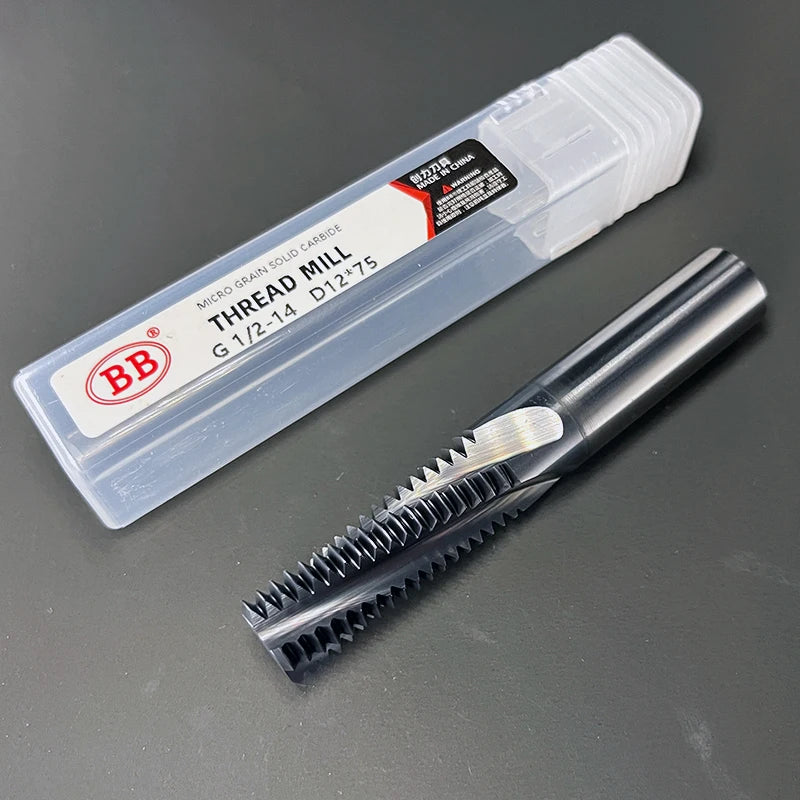

G1/2-14=G3/4-14

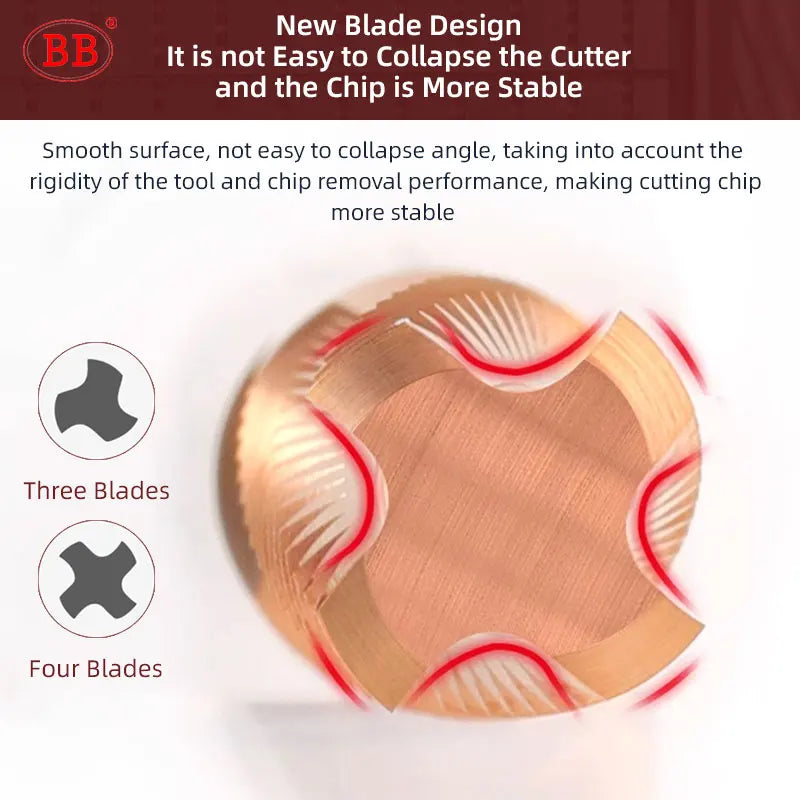

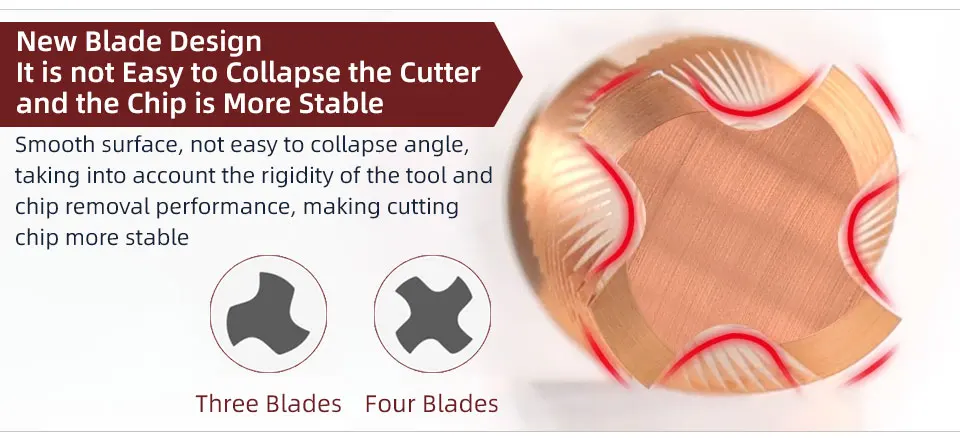

New Blade Design It is not Easy to Collapse the Cutter and the Chip is More Stable

Smooth surface, not easy to collapse angle, taking into account the rigidity of the tool and chip removal performance, making cutting chip more stable
Three Blades，Four Blades

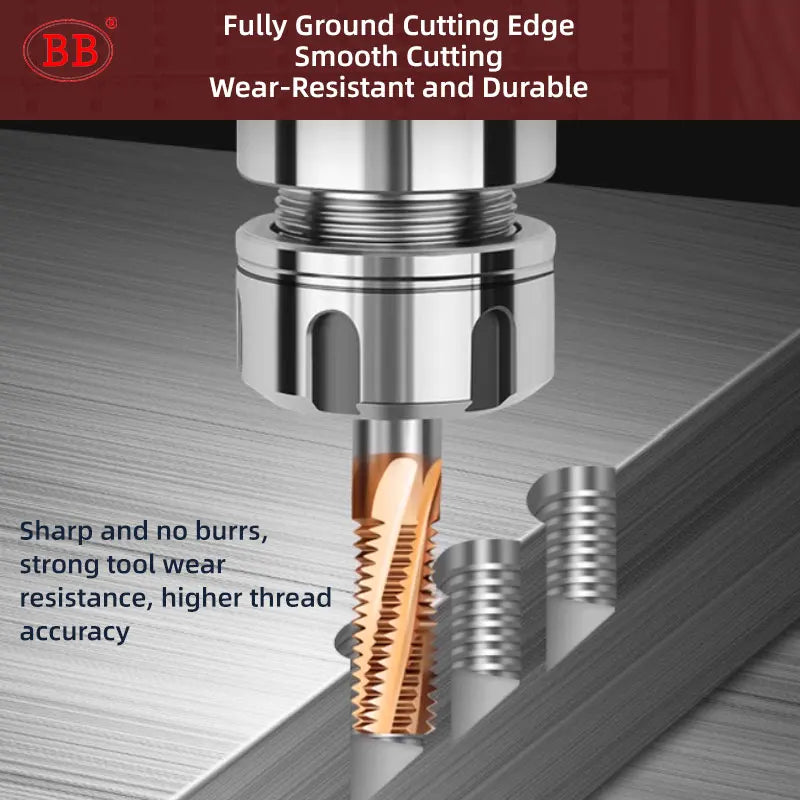

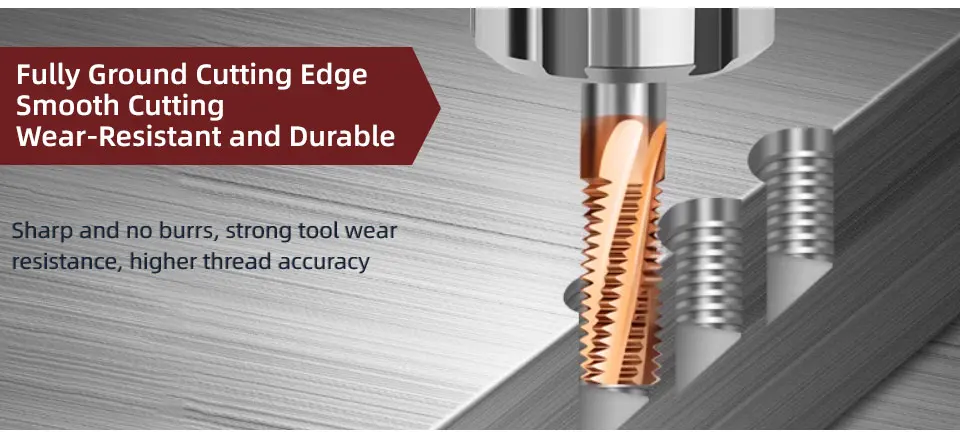

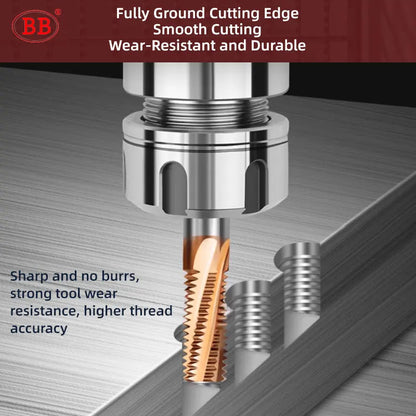

Fully Ground Cutting Edge Smooth Cutting Wear-Resistant and Durable

Sharp and no burrs, strong tool wear resistance, higher thread accuracy

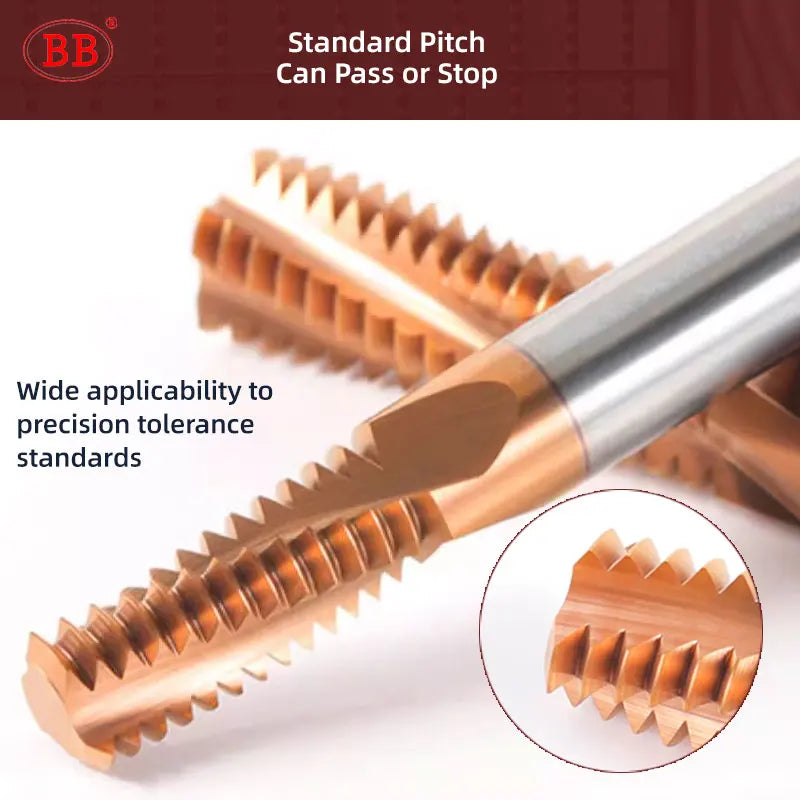

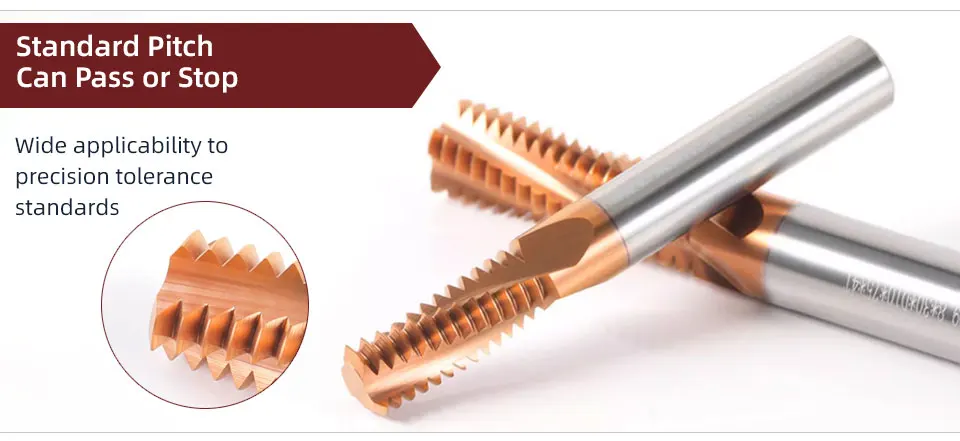

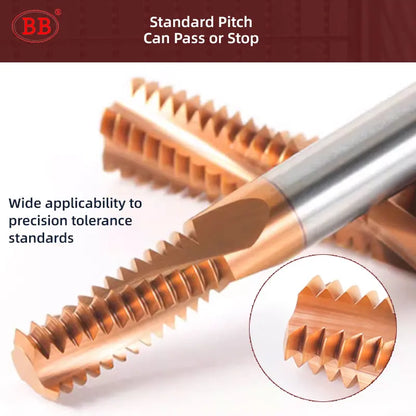

Standard Pitch Can Pass or Stop

Wide applicability to precision tolerance standards

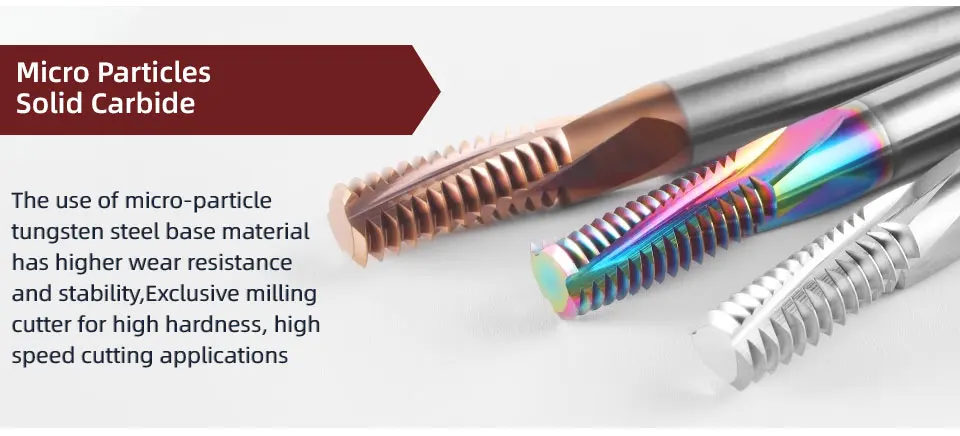

Micro Particles Solid Carbide

The use of micro-particle tungsten steel base material has higher wear resistance and stability,Exclusive milling cutter for high hardness, high speed cutting applications

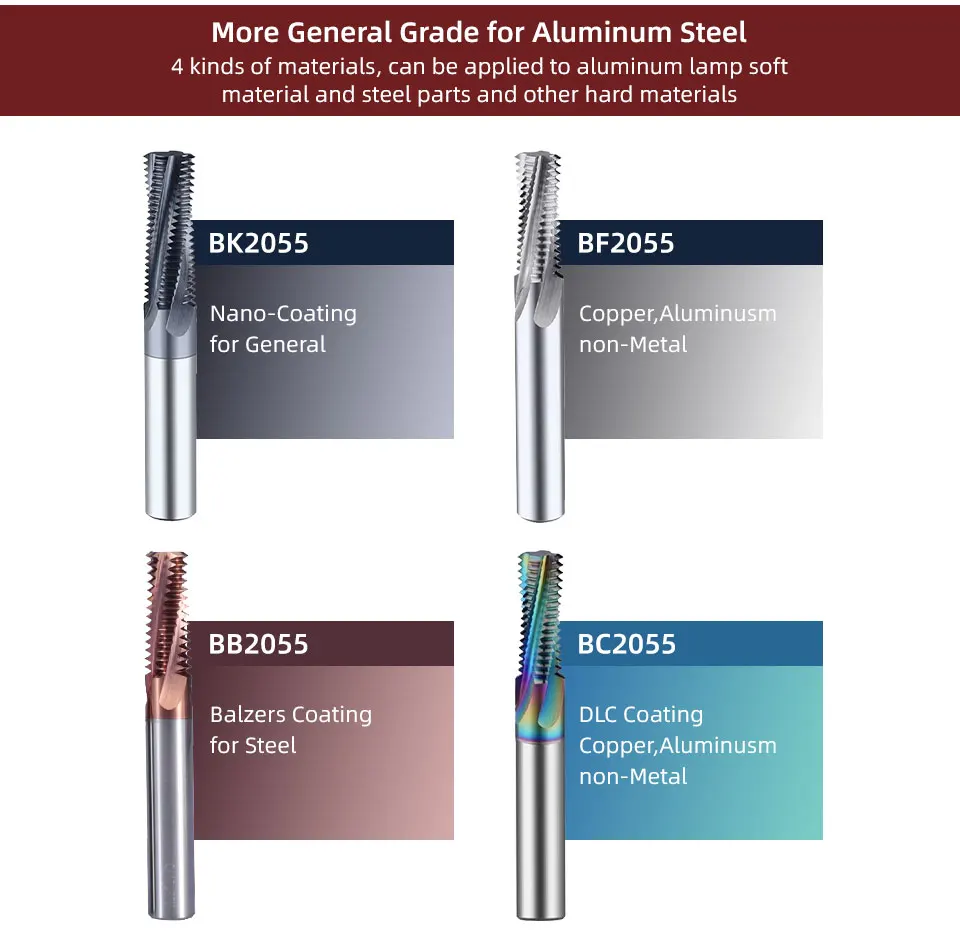

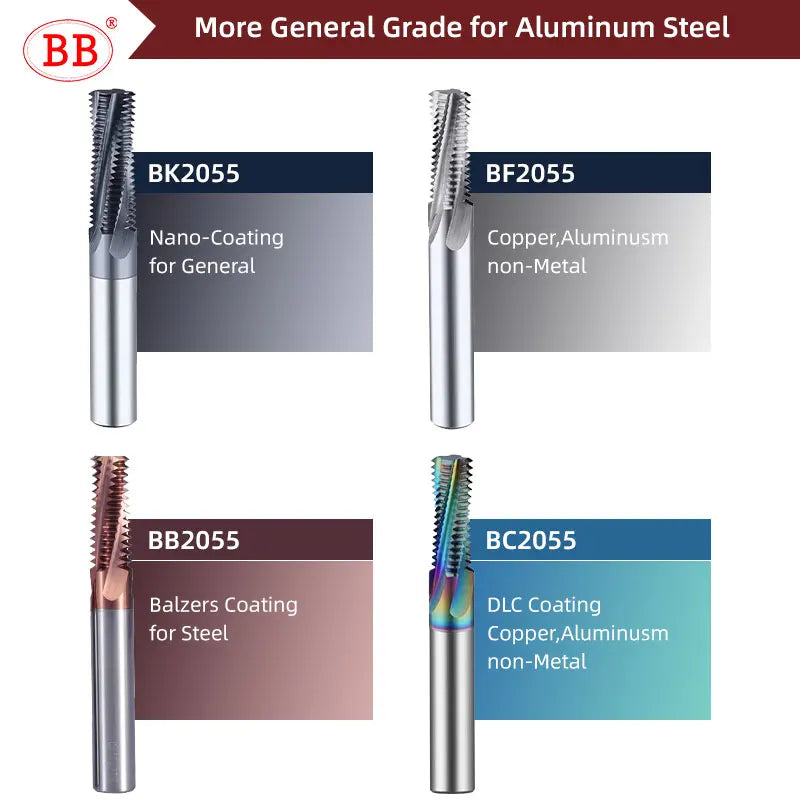

More General Grade for Aluminum Steel

4 kinds of materials, can be applied to aluminum lamp soft material and steel parts and other hard materials

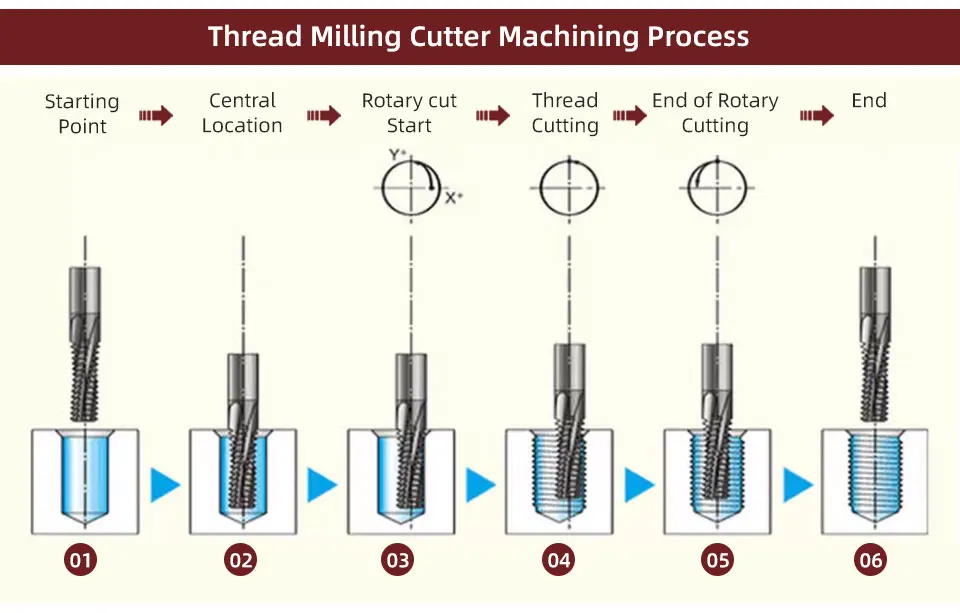

Thread Milling Cutter Machining Process

1、Starting Point
2、Central Location
3、Rotary cut Start
4、Thread Cutting
5、End of Rotary Cutting
6、End

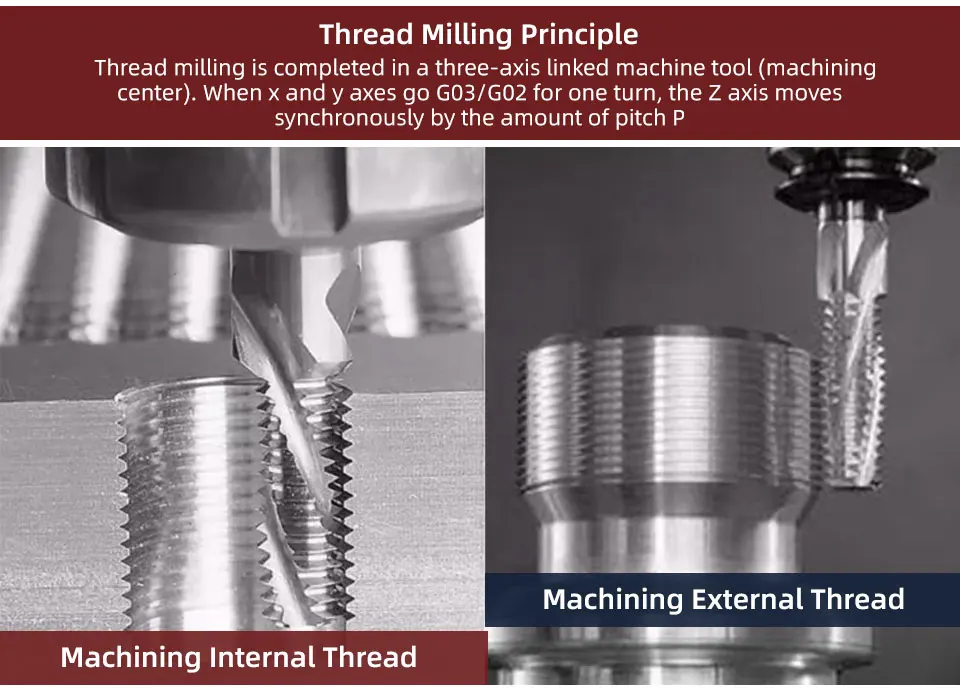

Thread Milling Principle

Thread milling is completed in a three-axis linked machine tool (machining center). When x and y axes go G03/G02 for one turn, the Z axis moves synchronously by the amount of pitch P
Machining Internal Thread
Machining External Thread

Remarks

Significance of 1/4-28 UNF
1/4 is the major diameter (outer diameter) of the thread, calculated in inches, 1 inch = 25.4mm
28 means that there are 28 threads per inch, which specifies the pitch.
UNF is United Fine Thread, that is, Fine Thread made in the United States, and some are UNC,C refers to coarse, that is, coarse Thread

Application

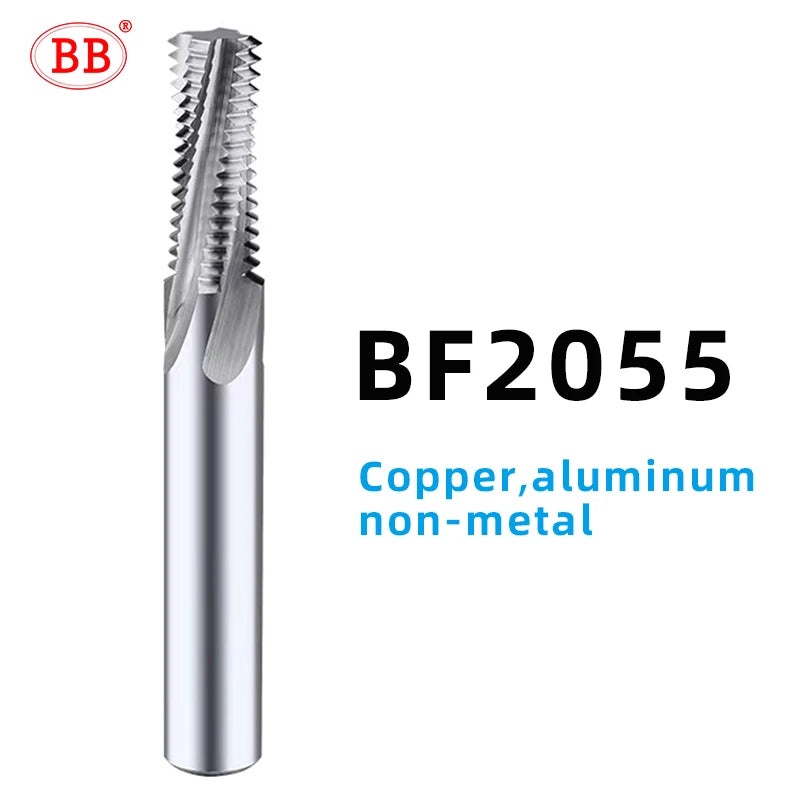

BF2055 Bright finish(uncoated):
Copper alloy, 6 series 7 series aluminum, pure aluminum, die-cast aluminum, plastic, POM, acrylic, zinc alloy, etc

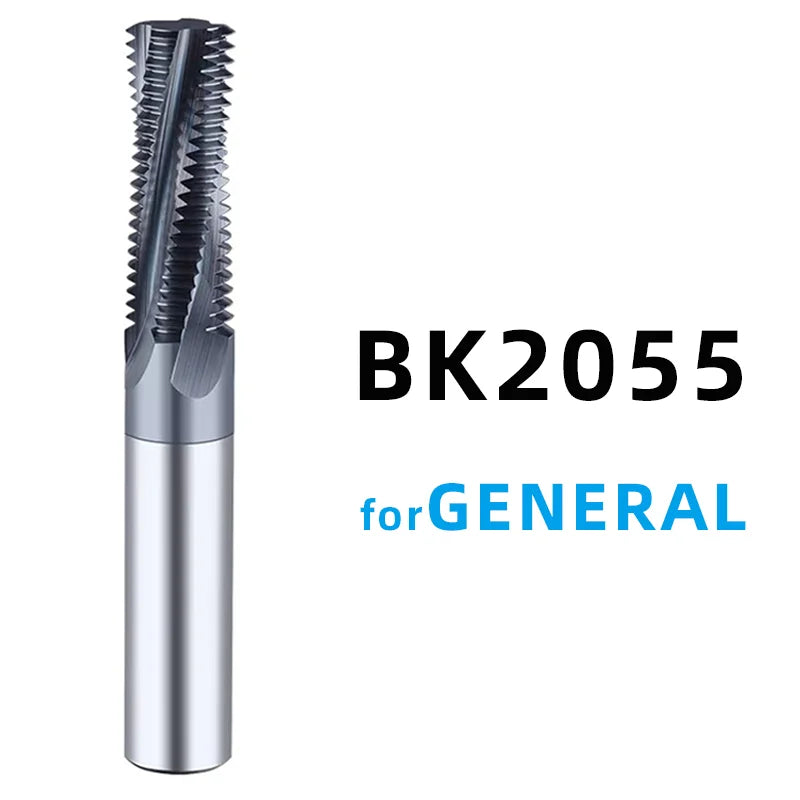

BK2055 Coated:
A3 iron, 45 steel, die steel, bearing steel, hardened steel, cast iron, stainless steel, titanium alloy, etc
