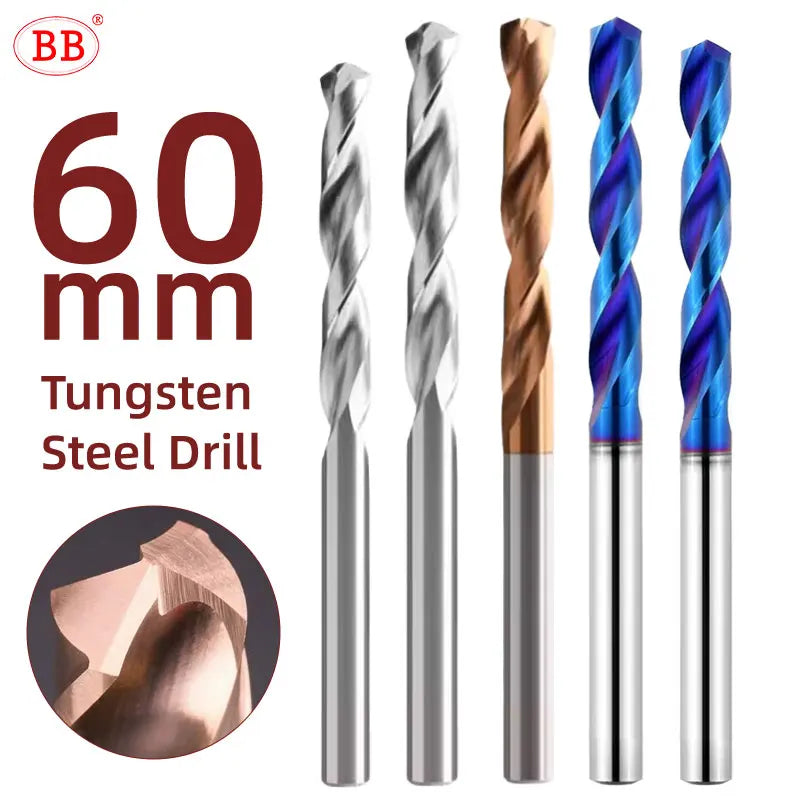

BL2060 60mm Carbide Drill 1–16mm | Blue Nano Coated

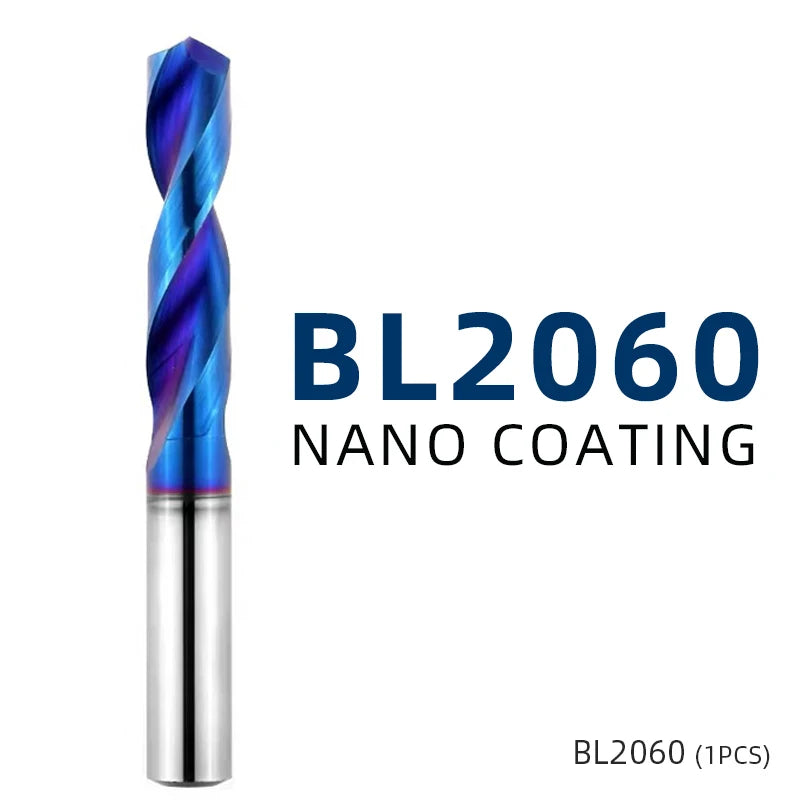

BL2060 60mm Blue Nano Coated Carbide Drill

The BB Tool BL2060 60mm carbide drill is an upgraded blue nano coated solid carbide drill with higher wear resistance than the BB2055 basic coated series.

Recommended workpiece materials — BL2060

Steel above HRC 35, including pre-hardened and alloy steels, plus ductile iron (nodular cast iron) and grey cast iron. Choose BL2060 when the workpiece is too hard for uncoated carbide but still below the fully hardened range.

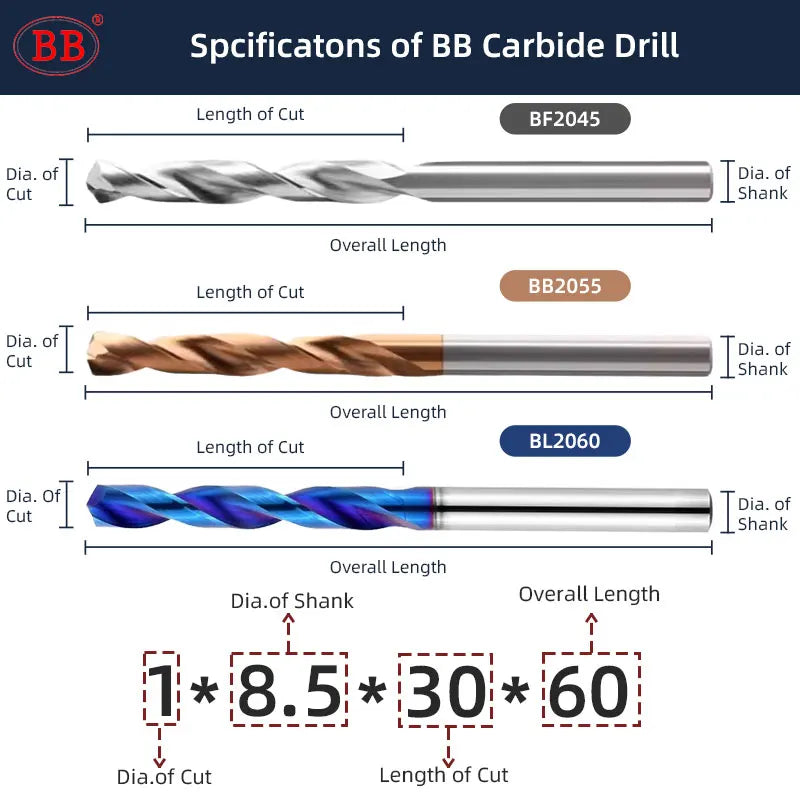

This page covers 60mm overall length with selected BL2060 diameter variants. Choose the required diameter from the variant list.

Key Features

BL2060 upgraded series: blue nano coated carbide drill with higher wear resistance.
60mm length: compact design for better rigidity when extra reach is not required.

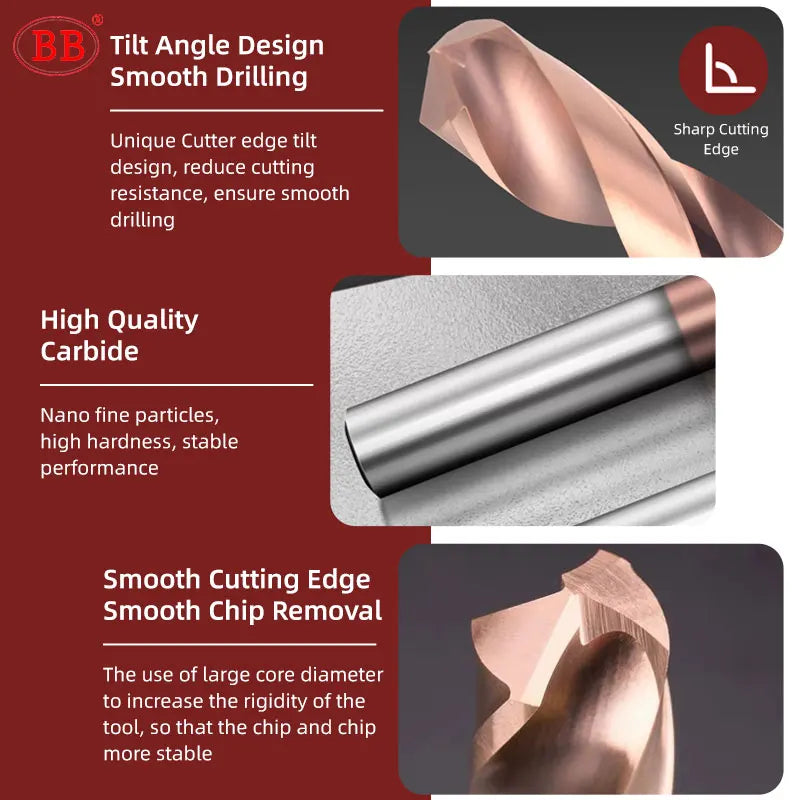

Spiral flute design: supports chip evacuation during drilling.
Rigid carbide construction: suitable for CNC machines, milling machines, drill presses, and other stable setups.

How to Choose

Choose BL2060 when you need a more wear-resistant upgraded coated drill option.

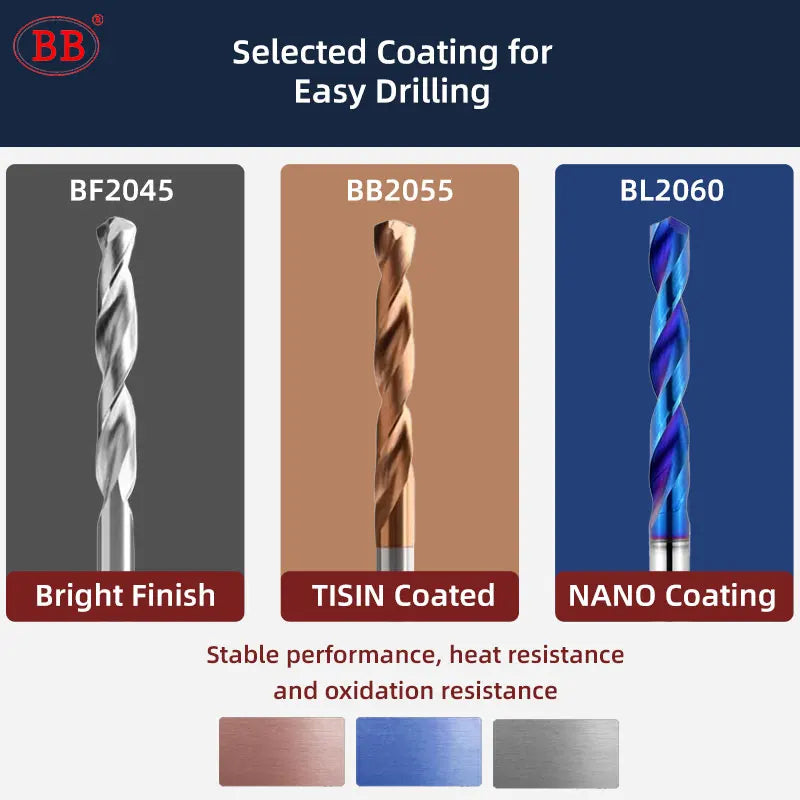

Choose BB2055 for BB Tool’s basic coated drill series for steel machining.
Choose BF2045 for aluminum, copper, plastics, and similar non-ferrous or non-metal materials.
Use the shortest drill that can safely reach the hole for better rigidity.

Usage Notes

Recommended for rigid machine setups.
Handheld electric drills and impact drills are not recommended.
Keep the drill aligned with the workpiece and control runout.
Use suitable coolant or chip-clearing strategy according to the material and drilling depth.
Do not use this carbide drill for concrete, tile, glass, or similar brittle construction materials.
