BB Corner Radius End Mill BK2060
BB Corner Radius End Mill BK2060
Regular price
$14.00 USD
Regular price
$0.00 USD
Sale price
$14.00 USD
Unit price
per
Couldn't load pickup availability
|
Dia.of CutΦ |
Dia of shank(D) |
Length of Cut |
Overall Length(L) |
Teeth |
| 1R0.2 | D4 | 3 | 50 | 4T |
| 1.5R0.2 | D4 | 4 | 50 | 4T |
| 2R0.1 | D4 | 6 | 50 | 4T |
| 2R0.2 | D4 | 6 | 50 | 4T |
| 2R0.5 | D4 | 6 | 50 | 4T |
| 2.5R0.2 | D4 | 8 | 50 | 4T |
| 2.5R0.5 | D4 | 8 | 50 | 4T |
| 3R0.1 | D4 | 8 | 50 | 4T |
| 3R0.2 | D4 | 8 | 50 | 4T |
| 3R0.5 | D4 | 8 | 50 | 4T |
| 3R1 | D4 | 8 | 50 | 4T |
| 4R0.2 | D4 | 10 | 50 | 4T |
| 4R0.5 | D4 | 10 | 50 | 4T |
| 4R0.5 | D4 | 12 | 75 | 4T |
| 4R0.5 | D4 | 12 | 100 | 4T |
| 4R1 | D4 | 10 | 50 | 4T |
| 4R1 | D4 | 12 | 75 | 4T |
| 4R1 | D4 | 12 | 100 | 4T |
| 5R0.2 | D6 | 13 | 50 | 4T |
| 5R0.5 | D6 | 13 | 50 | 4T |
| 5R1 | D6 | 13 | 50 | 4T |
| 5R2 | D6 | 13 | 50 | 4T |
| 6R0.1 | D6 | 15 | 50 | 4T |
| 6R0.2 | D6 | 15 | 50 | 4T |
| 6R0.2 | D6 | 18 | 75 | 4T |
| 6R0.5 | D6 | 15 | 50 | 4T |
| 6R0.5 | D6 | 18 | 75 | 4T |
| 6R0.5 | D6 | 20 | 100 | 4T |
| 6R1 | D6 | 15 | 50 | 4T |
| 6R1 | D6 | 18 | 75 | 4T |
| 6R1 | D6 | 20 | 100 | 4T |
| 6R2 | D6 | 15 | 50 | 4T |
| 6R2 | D6 | 20 | 100 | 4T |
| 8R0.2 | D8 | 20 | 60 | 4T |
| 8R0.5 | D8 | 20 | 60 | 4T |
| 8R0.5 | D8 | 25 | 75 | 4T |
| 8R0.5 | D8 | 25 | 100 | 4T |
| 8R1 | D8 | 20 | 60 | 4T |
| 8R1 | D8 | 25 | 75 | 4T |
| 8R1 | D8 | 25 | 100 | 4T |
| 8R1.5 | D8 | 20 | 60 | 4T |
| 8R2 | D8 | 20 | 60 | 4T |
| 8R2 | D8 | 25 | 100 | 4T |
| 10R0.2 | D10 | 25 | 75 | 4T |
| 10R0.5 | D10 | 25 | 75 | 4T |
| 10R0.5 | D10 | 30 | 100 | 4T |
| 10R0.8 | D10 | 25 | 75 | 4T |
| 10R1 | D10 | 25 | 75 | 4T |
| 10R1 | D10 | 30 | 100 | 4T |
| 10R1.5 | D10 | 25 | 75 | 4T |
| 10R2 | D10 | 25 | 75 | 4T |
| 10R2 | D10 | 30 | 100 | 4T |
| 10R2.5 | D10 | 25 | 75 | 4T |
| 10R3 | D10 | 25 | 75 | 4T |
| 12R0.2 | D12 | 30 | 75 | 4T |
| 12R0.5 | D12 | 30 | 75 | 4T |
| 12R0.5 | D12 | 36 | 100 | 4T |
| 12R1 | D12 | 30 | 75 | 4T |
| 12R1 | D12 | 36 | 100 | 4T |
| 12R1.5 | D12 | 30 | 75 | 4T |
| 12R2 | D12 | 30 | 75 | 4T |
| 12R2.5 | D12 | 30 | 75 | 4T |
| 12R3 | D12 | 30 | 75 | 4T |
BB® Corner Radius End Mill

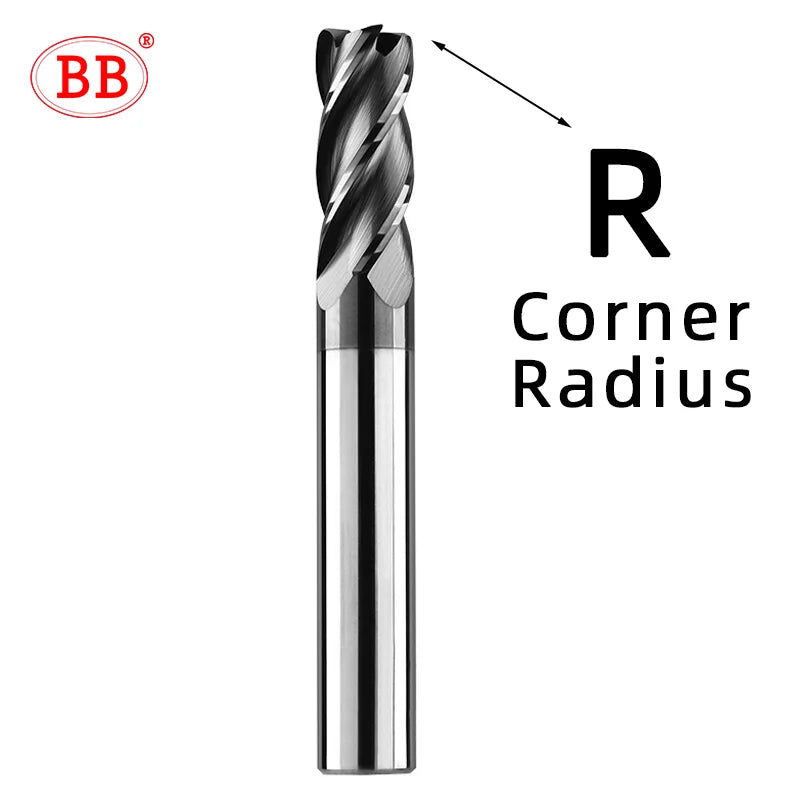

-Corner radius to protect cutting edge.reduce fracturing during the milling process while greatly increasing tool life and enhancing finish.
-Surface Machining & Inclined plane machining

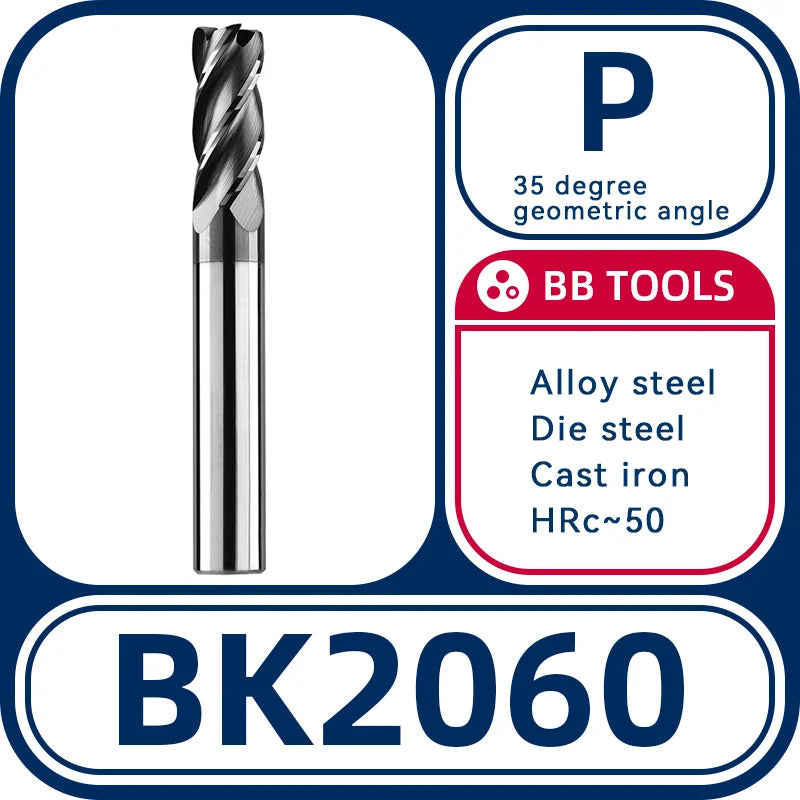

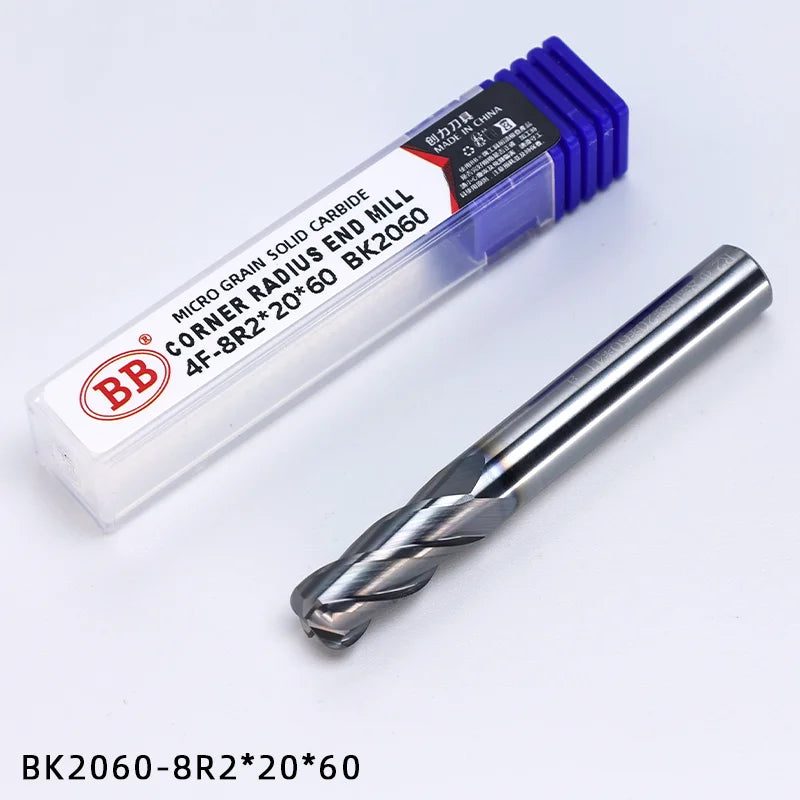

BK2060
Geometry :35°
-For general machining. Steel, Stainless steel, magnalium, epoxy plate, durostone, copper electrode, and so on.

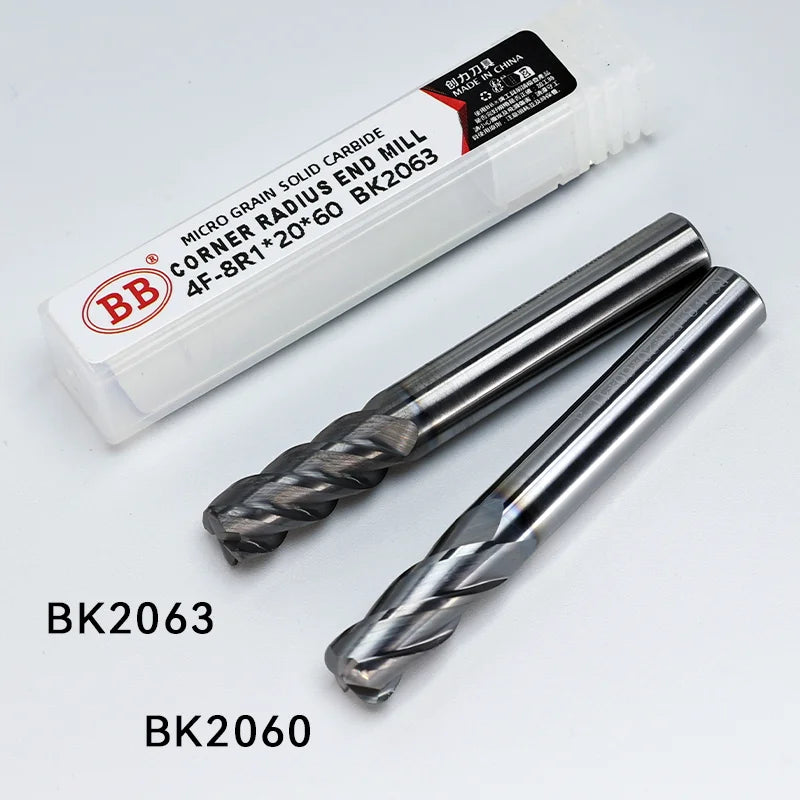

BK2063
Geometry :45°
-For High hardness steel.
Unique diamond coating technology, hardened milling cutter body
BB2055&BL2060
