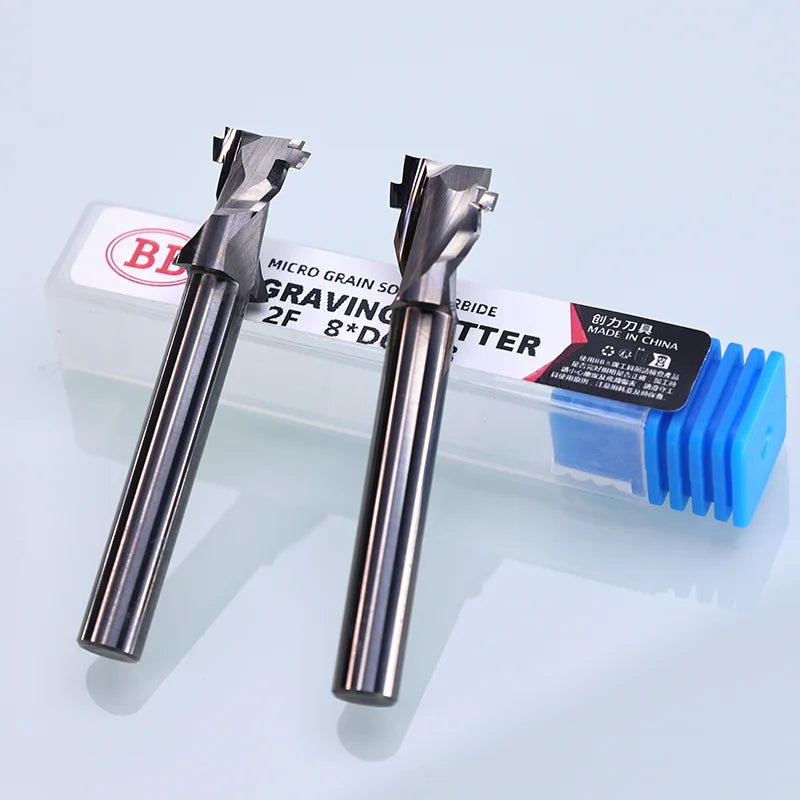

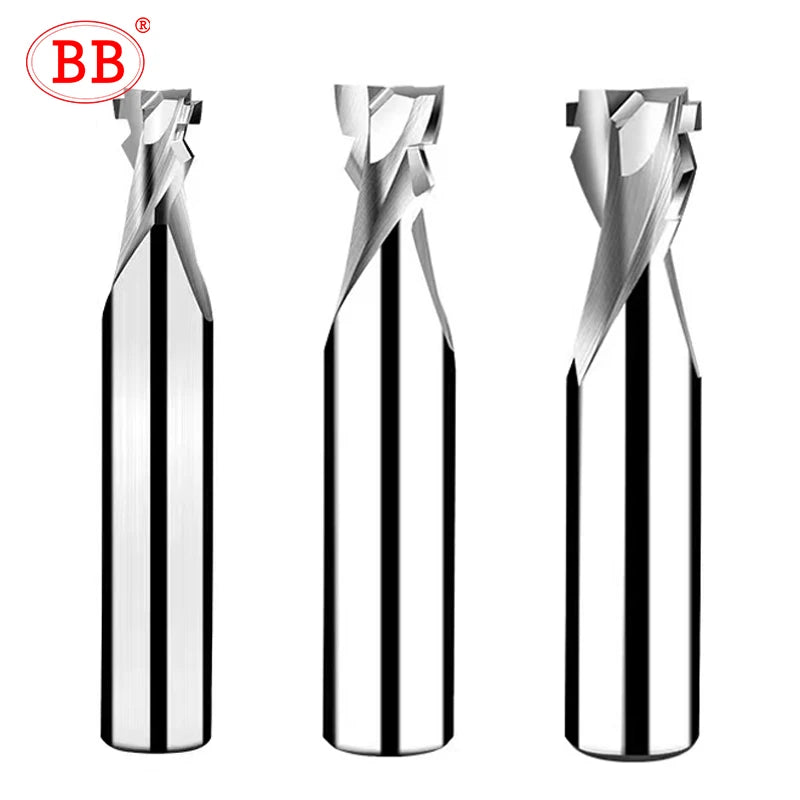

CNC slotting cutter designed for machining channels used in flexible neon and LED strip installations.
Suitable Materials
Acrylic
PVC
Organic board
Plywood and similar sheet materials

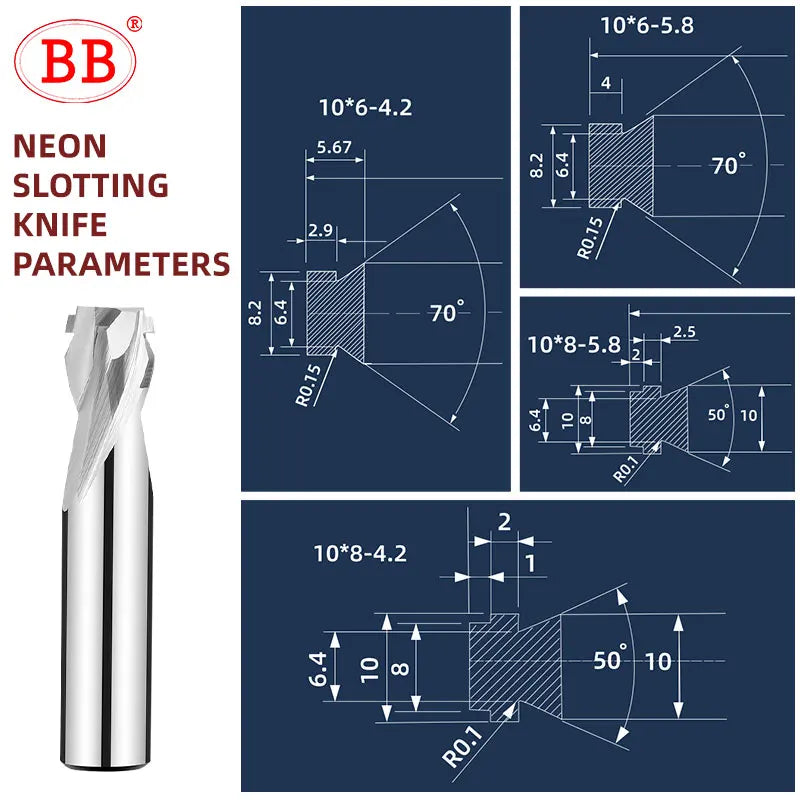

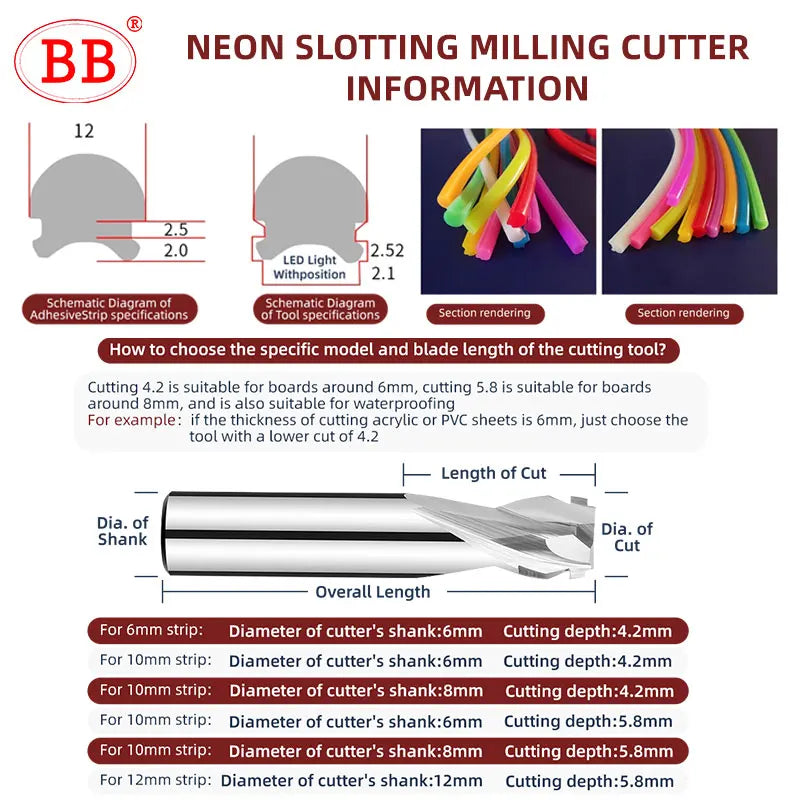

Selection Guide
Choose the cutter according to the strip width, shank diameter and required cutting depth. Common cutting-depth options include 4.2 mm and 5.8 mm.

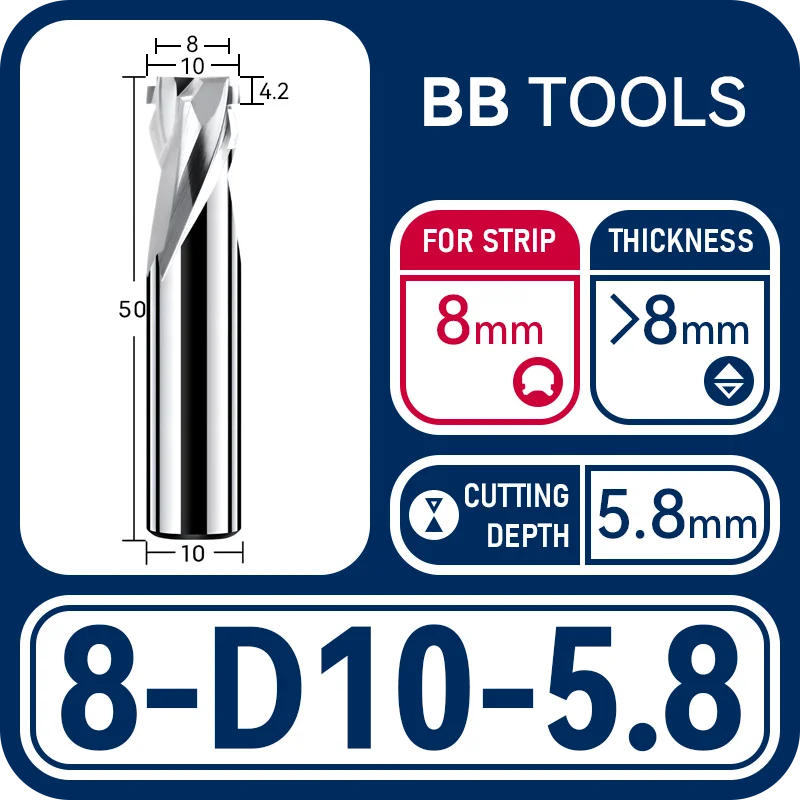

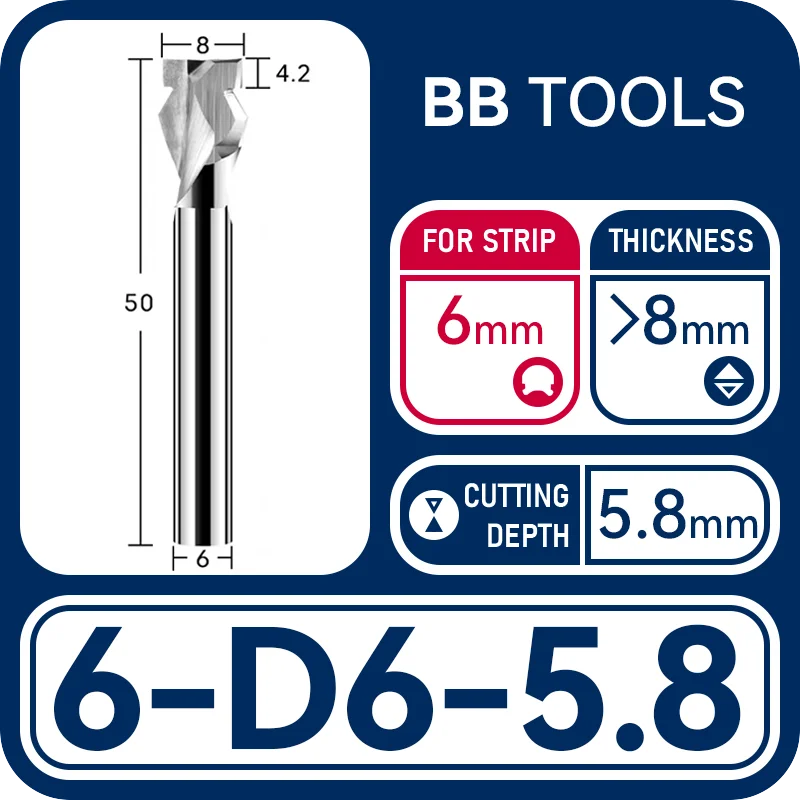

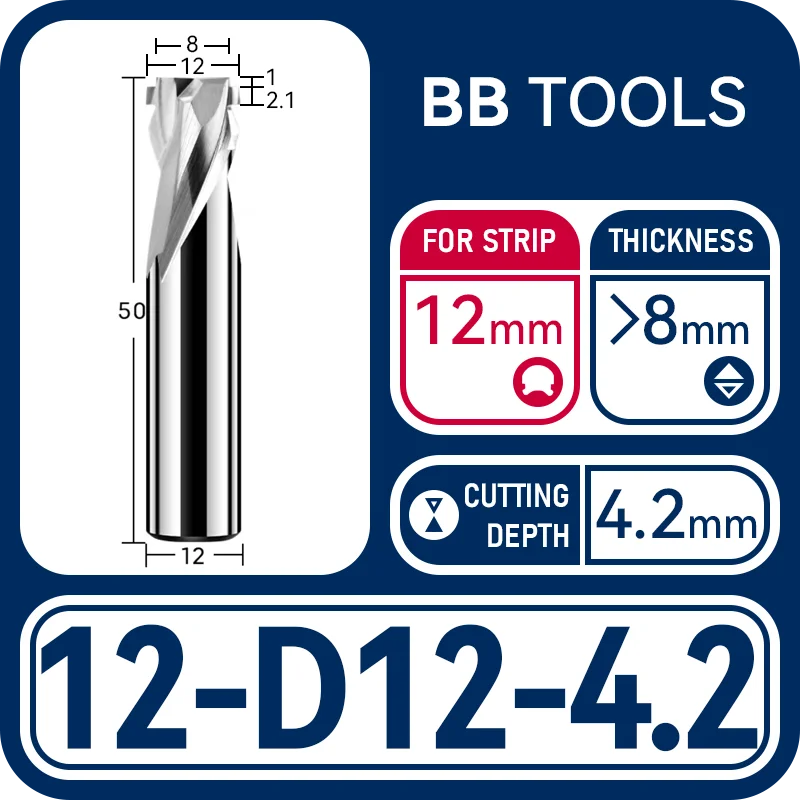

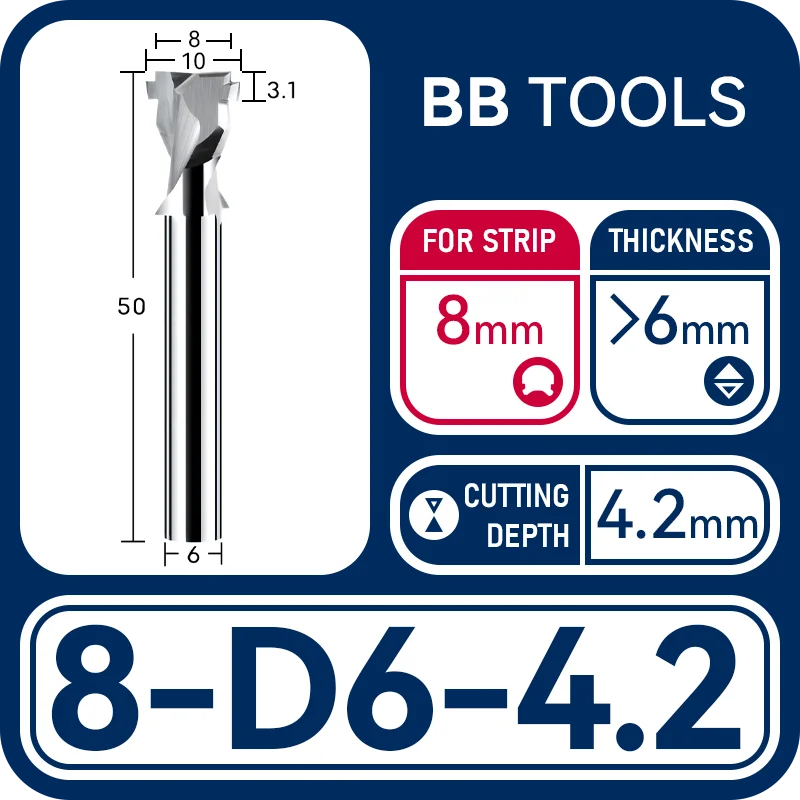

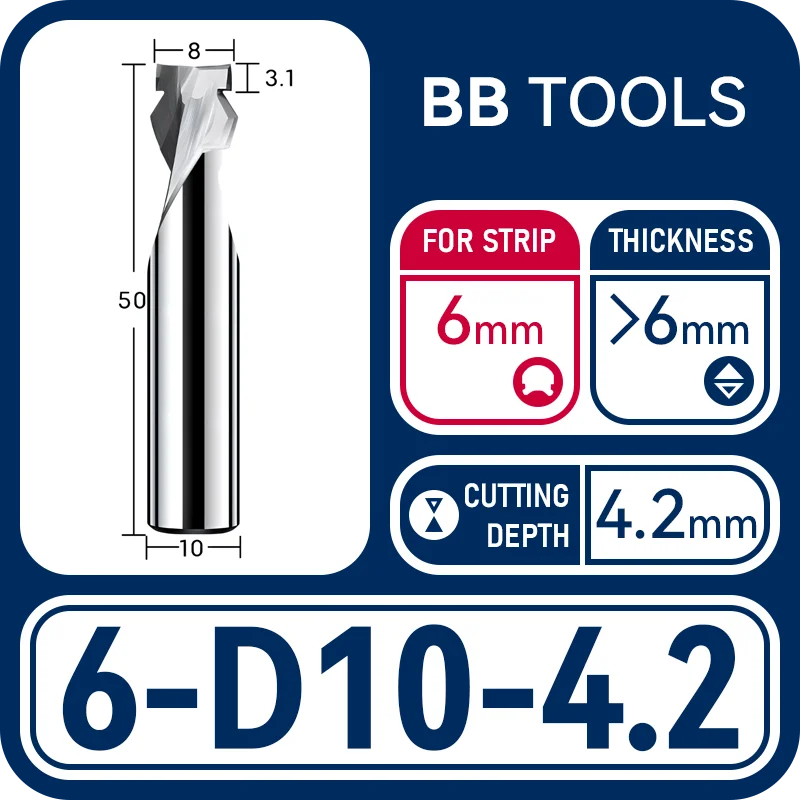

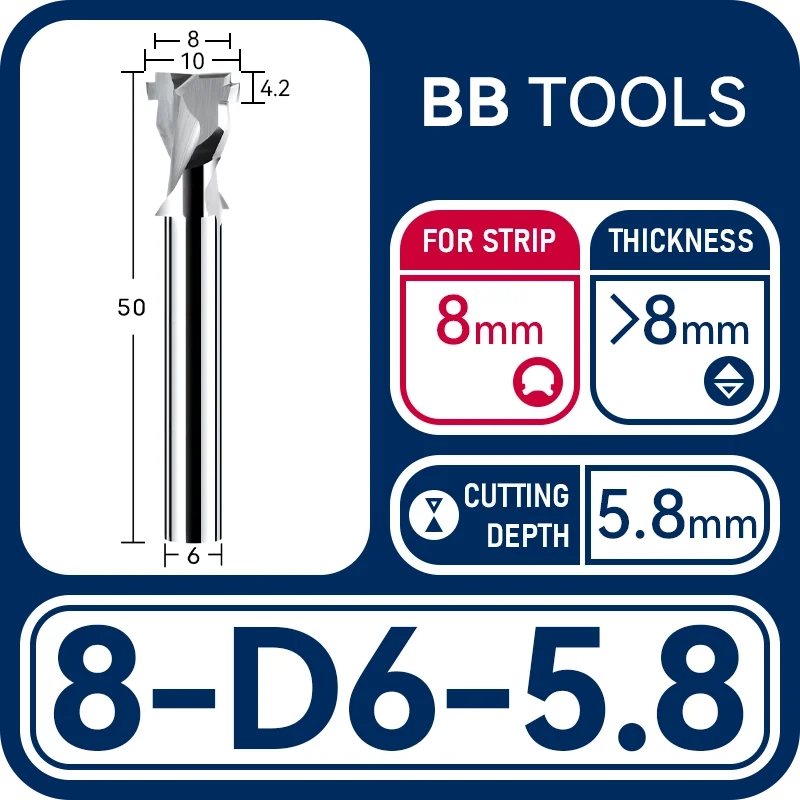

Example: 6mm-D6-4.2 indicates a cutter for a 6 mm strip, 6 mm shank and approximately 4.2 mm cutting depth.
Machining Guidance
Typical spindle-speed guidance is approximately 18,000–24,000 rpm, but final parameters should be adjusted for cutter size, workpiece material, machine rigidity and desired finish.
Note: Exact dimensions vary by variant. Please confirm the selected specification before ordering.
